| Dimensions (D x W x H) | 405.5 x 330 x 196mm |
| Processor | Support Intel 12th/13th Generation Core Processor, LGA1700 |
| EFI BIOS | |
| Memory | Dual Channel 4 x DDR5 U-DIMM, up to 128GB |
| Storage | 1 x M.2 M-Key 2280 (NVMe) |
| 4 x SATA 3.0 ports (supports RAID0/1/5/10) | |
| Board Side I/O Interface | 1 x HDMI2.0, support 4096×2160@60Hz, 1 x DP support 7680×4320@60Hz, 1 x VGA |
| 3 x RJ45 Ethernet Port, 6 x USB3.2 | |
| 1 x DB9 COM1 (RS232/RS422/RS485) | |
| 1 x AUDIO (Line in, Line out, Mic in) | |
| Expansion Interfaces/Functions
|
1 x F_PANEL pin, 1 x LPT (switchable 8-way GPIO) pin |
| 2 x Type A USB2.0, 2 x USB2.0 pins, 2 x USB3.2 pins, 1 x 5VSB dip switch | |
| 2 x PCIe_x16 slots (PCIe5.0_x16 for PCIE1, automatically downgraded to x8 when 2 PCIE_x16 slots are used at the same time)
3 x PCIe_x4(4.0), 1 x PCIe_x1(3.0), 1 x PCI |
|
| 5 x COM pins (COM2-COM6), of which COM2 is optional RS232/RS422/RS485
2 x Control COM ports (COM1 and COM2) 9 PIN voltage pins |
|
| 1 x 4 Pin Intelligent temperature control CPU fan, 1 system fan | |
| 1 x HDMI pin, 1 x F_AUDIO pin, 1 x SPK pin | |
| 1 x PS2 Pin, 1 x CLR_COMS Pin | |
| Power Supply | ENP-7140B or ENH-1940, 1U 400W, 80 Plus |
| Operating System Support | Windows 10，Windows 11，Linux etc. |

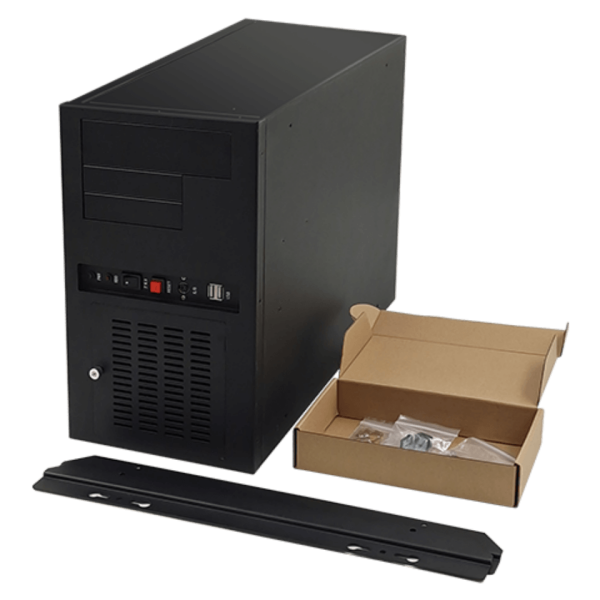

| Mounting Option | With Wall-mount Bracket |
| Warranty | 1 -Year Limited Warranty |
